שער סיבוב מתנדנד: מדריך מעשי לבחירה ואינטגרציה

A swing turnstile gate is designed for entrances that need controlled access without creating a narrow or visually restrictive passage. Its rotating barrier panels can support employees, מבקרים, משתמשי כיסאות גלגלים, מזוודות, עגלות משלוח, and families, making the design suitable for offices, בתי חולים, בתי ספר, קהילות מגורים, מבני ציבור, מפעלים, ומתקני תחבורה.

עם זאת, passage width alone does not make a swing gate suitable for a project. Buyers must also evaluate pedestrian flow, כיסוי חיישנים, closing behavior, אינטגרציית תעודות, emergency logic, תנאי הסביבה, וגישה לתחזוקה.

This guide explains how project buyers, אינטגרטורים של אבטחה, יועצים, and facility managers can select and specify a complete swing gate entrance.

What a Swing Turnstile Gate Actually Solves

A swing gate creates a controlled pedestrian lane using one or two motor-driven barrier panels. After a credential is approved, the controller opens the barrier, sensors monitor passage, and the gate returns to its controlled position after the user clears the lane.

Compared with a narrow mechanical turnstile, a swing design can provide a wider and more welcoming entrance. It can be configured for entry, יציאה, bidirectional passage, visitor release, or a dedicated wide lane.

Buyers can review Ironman’s swing barrier gate range before matching individual models to the entrance plan.

The gate does not work alone. Its performance depends on the reader, בקר, תוכנה, sensor layout, installation accuracy, and operating rules.

Choose Lane Width Around Real Users

Lane width should be selected according to the people and objects that will use the entrance. A standard employee lane may only need to handle one adult, while a public building may also receive wheelchair users, מבקרים עם מזוודות, הורים עם עגלות, או ציוד להעברת צוות.

Define:

• The normal user group
• Required clear passage width
• כיסא גלגלים, עגלה, מזוודות, or cart traffic
• Reader position and scanning height
• Approach and exit clearance
• One-panel or two-panel operation

A wider lane may change barrier length, שעת פתיחה, עומס מנוע, כיסוי חיישנים, עיגון רצפה, and the space required for panel rotation. Ask the supplier to confirm a complete lane drawing rather than quoting only a nominal passage width.

עבור ארה"ב. פרויקטים, accessibility should be reviewed as part of the complete route. ארה"ב. Access Board explains requirements for entrances, דלתות, גייטס, מרחב תמרון, and clear opening width. Applicable door and gate openings generally require at least 32 אינץ ', או 815 מ"מ, of clear width.

סקירה של official entrances, דלתות, and gates guidance and confirm the final entrance design with the project authority.

Evaluate Barrier Motion and Pedestrian Safety

The key safety question is not simply whether the gate has infrared sensors. Buyers should understand where the sensors are positioned and how the controller responds to different pedestrian movements.

Review gate behavior when:

• A user enters after valid authorization
• A person stops inside the lane
• A child walks close to an adult
• Two people attempt to use one credential
• Someone approaches from the wrong direction
• A bag or cart remains in the detection area
• The barrier meets resistance while closing
• The user scans but does not enter

A suitable design should coordinate detection, פתיחת, פסק זמן מעבר, אזעקה, and closing logic. Ask for a sensor diagram and a video showing the approved lane width under realistic conditions.

Longer or heavier barrier panels may require different motor settings and slower movement. Fast operation is useful only when it does not create uncomfortable or unsafe closing behavior.

Match the Security Level to the Sensor Strategy

Swing turnstiles range from simple controlled gates to multi-sensor systems with anti-tailgating and wrong-direction alarms. More sensors do not automatically guarantee better security. Their positions, algorithms, גאומטריית מסלולים, and operating rules must work together.

A staffed reception area may mainly need to prevent casual unauthorized entry. A corporate facility may require anti-tailgating alerts and event records, while a residential or school entrance may prioritize safe passage and convenient visitor release.

Restricted perimeter areas may require a different physical barrier.

Compare the swing gate with other קטגוריות שער קורה. A שער מהירות may provide a more enclosed premium lane, בזמן ש קטורנסטל בגובה מלא offers stronger physical deterrence for perimeter applications.

The correct product is the one that matches the security objective without creating unnecessary complexity or visitor inconvenience.

Integrate Readers and Access-Control Systems Before Production

A swing gate may be opened by RFID cards, קודי QR, אישורי מובייל, טביעות אצבעות, זיהוי פנים, visitor-management software, מערכות כרטיסים, or a reception release button.

Integration should be defined before cabinet openings and mounting brackets are finalized.

אישור:

• Reader model, מידות, and mounting position
• Dry-contact, ויגנד, RS-485, TCP/IP, or other interfaces
• ערך, יציאה, and bidirectional authorization logic
• Offline behavior during network interruption
• Event recording and alarm output
• Visitor and manual-release permissions
• Fire-alarm or emergency input

איירונמן'ס access-control equipment can be reviewed when planning readers and controllers. Even when standard interfaces are available, the actual credential, בקר, תוכנה, and gate should be tested as one configuration.

For projects requiring certified access-control components, UL states that UL 294 provides a standardized framework for testing and certifying access-control system units. Confirm the evaluated product and certification scope through the UL access-control system resource rather than extending one component’s certification to the complete entrance.

Define Emergency and Power-Failure Behavior

Emergency operation should be agreed before installation. The term “fail-safe” is incomplete unless the required barrier position, opening direction, power source, and control signal are documented.

Ask what happens when:

• Building power is lost
• Network communication fails
• A fire-alarm signal is received
• Security staff trigger emergency release
• The motor or sensor reports a fault
• Normal power and communication return

The gate may open automatically, unlock for manual movement, remain controlled by backup power, or follow another approved sequence. The correct behavior depends on the site’s egress strategy, local requirements, and risk assessment.

The supplier should describe the gate function, but the complete emergency route must be reviewed by the designer, אינטגרטור, facility operator, and relevant local authority.

Plan Outdoor Installation by Component

An outdoor swing gate combines mechanical and electronic components with different exposure risks. Do not accept a general “outdoor waterproof” description without clarifying which enclosure, קורא, בקר, motor area, or connector has been evaluated.

חשבון:

• Cabinet material and stainless-steel grade
• Reader and indicator protection
• איטום בקר-תא
• Cable glands and underground conduits
• Drainage around the cabinet base
• Rain direction and canopy coverage
• טמפרטורה, לחות, מלח, אבק, וכימיקלים לניקוי
• Foundation, anchors, and service clearance

The IEC explains that IP codes classify enclosure protection against solids and liquids under defined test conditions. Use the IEC IP ratings guidance to specify the required protection and confirm exactly which component the rating covers.

Compare Swing Gates With Other Turnstile Types

Selection Factor	שער סיבוב מתנדנד	טרנסטל חצובה	שער המהירות	שער בגובה מלא
רוחב המעבר	Wide options available	Usually narrow	Standard to moderately wide	מוגבלת
Visual appearance	Open and welcoming	פונקציונלי	Premium and enclosed	Strong security boundary
Luggage and wheelchair use	Suitable with correct layout	מוגבל	Model-dependent	Generally unsuitable
Tailgating control	Sensor-dependent	Mechanical rotation	Advanced sensor options	Strong physical separation
Typical location	משרדים, בתי חולים, קמפוסים	Factories and staff entrances	Corporate buildings	Perimeters

The comparison should be made at lane level, not only at cabinet level. Include the reader, בקר, accessible route, surrounding doors, staffing, and emergency path in the decision.

A swing gate may provide the best balance of wide passage and controlled access, but it should not be presented as the universal solution for every security environment.

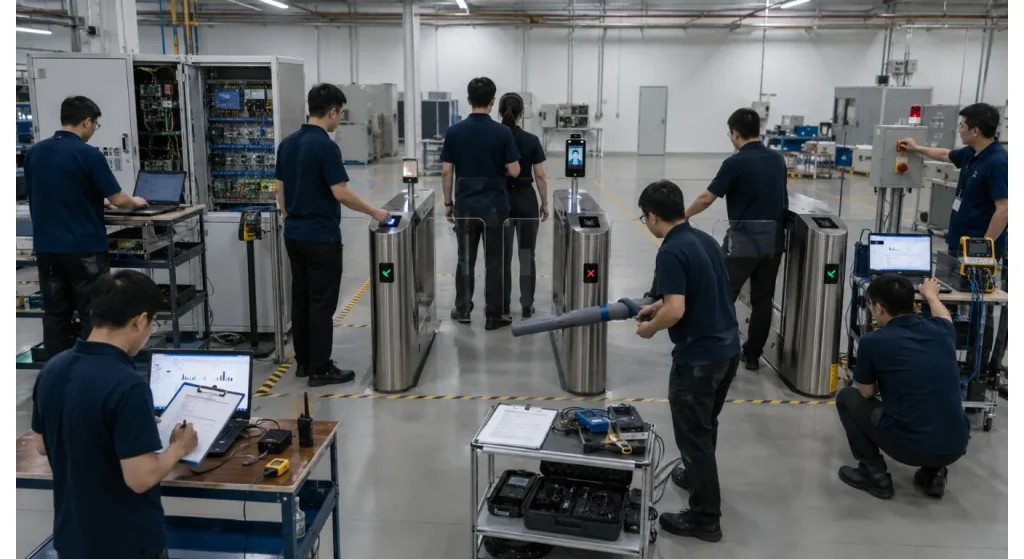

Test the Approved Lane Before Shipment

Factory acceptance testing should use the approved cabinet, barrier length, קורא, בקר, sensor settings, ולוגיקת הפעלה. A tabletop controller test does not prove that the final pedestrian lane will perform correctly.

המבחנים המומלצים כוללים:

• Valid and invalid credentials
• ערך, יציאה, and bidirectional passage
• Closely spaced users
• Tailgating attempts
• תנועה בכיוון הלא נכון
• משתמש שעוצר בתוך הנתיב
• Luggage, עגלות, or other expected objects
• Power and network interruption
• Fire-alarm or emergency input
• Manual release and system recovery

Ask for test records, קטעי וידאו, מספרי סידורי, and the confirmed controller configuration. איירונמן'ס technical support videos can also assist installers and maintenance teams.

Testing the actual project configuration before shipment reduces programming changes, sensor adjustments, and responsibility disputes at the installation site.

Prepare a Clear Swing Turnstile Gate RFQ

A detailed RFQ allows the supplier to recommend a workable lane configuration instead of simply quoting a standard catalog model.

לספק:

• הגשת הפרויקט ומדינה
• Entrance plan and available dimensions
• Required lane quantity and clear passage width
• User groups and peak pedestrian flow
• מקורה, מכוסה, or outdoor environment
• אישור, קורא, and platform details
• ערך, יציאה, and visitor-management logic
• Accessibility and emergency requirements
• Cabinet finish and barrier material
• התקנה, בדיקות, and documentation scope
• Spare-parts requirements and delivery schedule

סקירה של turnstile gate installation guide when planning foundations, תעלות, כח, כבלי תקשורת, and cabinet alignment.

Submit the entrance layout and system requirements through the דף יצירת קשר עם איירונמן for project evaluation.

מסקנה

A swing turnstile gate should be selected as a complete pedestrian lane, not as a standalone stainless-steel cabinet. רוחב המעבר, barrier movement, sensor logic, אינטגרציה עם בקרת גישה, נגישות, emergency operation, outdoor protection, and factory testing all affect project performance.

The most reliable solution is based on real users, documented interfaces, approved drawings, and tested operating scenarios. Defining these requirements before production reduces unsafe behavior, site modifications, integration delays, and long-term maintenance problems.

שאלות נפוצות

Where Are Swing Turnstile Gates Commonly Used?

They are widely used in offices, בתי חולים, בתי ספר, residential buildings, מתקנים ציבוריים, and transport entrances. Their wide passage makes them suitable for visitors, מזוודות, עגלות, and wheelchair access when correctly designed.

Can a Swing Turnstile Gate Support Facial Recognition?

כן, it can integrate with facial recognition, RFID, קוד QR, ביומטרי, or mobile credential systems. Reader dimensions, ממשקי, and opening logic should be confirmed before production.

How Wide Should a Swing Turnstile Lane Be?

Width depends on the user group and project requirements. Standard pedestrian lanes and accessible lanes should be planned separately using actual clear-opening dimensions.

Is a Swing Turnstile Gate Suitable for Outdoor Use?

כן, when the cabinet, קורא, בקר, ערכי כבלים, ניקוז, and foundation are designed for the environment. Confirm the applicable IP rating and corrosion protection by component.

How Should a Swing Turnstile Gate Be Tested?

בדיקת אישורים תקפים ולא תקינים, זיהוי מכשולים, טיילגייטינג, תנועת כיוון לא נכון, שחרור חירום, and power or network failure. Use the final barrier length, קורא, בקר, and project settings.
